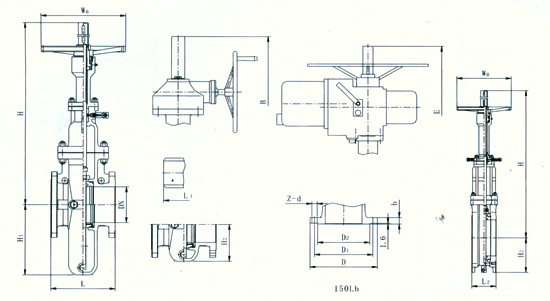

Main size of outside
Model:150Lb
| NPS(in) |
Overall dimensions(mm) |
Geared |
Electric |
| L |
L1 |
L2 |
D |
D1 |
D2 |
b |
z-d |
Wo |
H1 |
H2 |
H |
B |
E |
| 2 |
178 |
216 |
|
152 |
120.5 |
92 |
16 |
4-19 |
200 |
130 |
85 |
440 |
|
|
|
|
| 21/2 |
190 |
241 |
|
178 |
139.5 |
105 |
17.5 |
4-19 |
250 |
150 |
95 |
485 |
|
|
|
|
| 3 |
203 |
283 |
|
190 |
152.5 |
127 |
19.5 |
4-19 |
250 |
182 |
105 |
570 |
|
|
|
|
| 4 |
229 |
305 |
150 |
229 |
190.5 |
157 |
24 |
8-19 |
300 |
220 |
120 |
665 |
765 |
910 |
BA-0 |
SMC-04 |
| 5 |
254 |
381 |
150 |
254 |
216 |
186 |
24 |
8-22 |
300 |
260 |
140 |
770 |
870 |
1030 |
BA-0 |
SMC-04 |
| 6 |
267 |
403 |
150 |
279 |
241.5 |
216 |
25.5 |
8-22 |
350 |
300 |
155 |
875 |
960 |
1105 |
BA-0 |
SMC-03 |
| 8 |
292 |
419 |
180 |
343 |
298.5 |
270 |
29 |
8-22 |
350 |
380 |
180 |
1080 |
1190 |
1390 |
BA-0 |
SMC-03 |
| 10 |
330 |
457 |
180 |
406 |
362 |
324 |
30.5 |
12-25 |
400 |
475 |
215 |
1285 |
1360 |
1550 |
BA-0 |
SMC-03 |
| 12 |
356 |
502 |
200 |
483 |
432 |
381 |
32 |
12-25 |
450 |
555 |
245 |
1480 |
1560 |
1740 |
BA-1 |
SMC-00 |
| 14 |
381 |
572 |
200 |
533 |
476 |
413 |
35 |
12-29 |
4450 |
630 |
275 |
1660 |
1740 |
1905 |
BA-1 |
SMC-00 |
| 16 |
406 |
610 |
218 |
597 |
540 |
470 |
37 |
16-29 |
500 |
705 |
305 |
1855 |
1925 |
2100 |
BA-1 |
SMC-00 |
| 18 |
432 |
660 |
218 |
635 |
578 |
533 |
40 |
16-32 |
550 |
785 |
330 |
2050 |
2145 |
2355 |
BA-1 |
SMC-0 |
| 20 |
457 |
711 |
229 |
699 |
635 |
584 |
43 |
20-32 |
600 |
865 |
365 |
2240 |
2400 |
2570 |
BA-1 |
SMC-0 |
| 24 |
508 |
813 |
248 |
813 |
749.5 |
692 |
48 |
20-35 |
700 |
1045 |
445 |
2655 |
2785 |
2975 |
BA-2 |
SMC-0 |
| 28 |
610 |
914 |
286 |
927 |
864 |
800 |
71 |
28-35 |
|
1190 |
505 |
|
3190 |
3380 |
BA-2 |
SMC-1 |
| 32 |
660 |
965 |
286 |
1060 |
978 |
914 |
81 |
28-41 |
|
1350 |
560 |
|
3630 |
3840 |
BA-3 |
SMC-1 |
| 36 |
711 |
1016 |
|
1168 |
1086 |
1022 |
90 |
32-41 |
|
1510 |
610 |
|
4045 |
4245 |
BA-3 |
SMC-2 |
