1	Body
2	Seat
3	Ball
4	Upper bearig sleeve
5	Stud
6	Hexagon nut
7	Bonnet
8	Stem
9	Bearing
1φ	Stem nut
11	Nut gland
12	Handwheel
13	Anchor gland
14	Packing gland
15	Bushing
16	Packing
17	Lantern ring
18	Hexagon nut
19	Flat washer
2φ	Eye bolt
21	Pin
22	Forelock
23	Oil cap
24	Holding screw
25	Hexagon nut
26	Cap nut
27	Sealant injection valve
28	Pin
29	Locating bush
3φ	Metal wound gasket

ORBIT BALL VALVE
Part Materials And Main Parameters

Nominal diameter(in)			NPS 2-2φ
Nominal Pressure(MPa)			Class15φ-Class6φφ
Materials of parts	NO．	Part name	Materials
			Caφon steel Stainless steel
	1	Body	ASTM A216 WCB	ASTM A351 CF8	ASTM A351 CF8M	ASTM A351 CF3	ASTM A351 CF3M
	2	Seat	ASTM A1φ5+HF	ASTM A182 3φ4+HF	ASTM A182 316+HF	ASTM A182 3φ4L+HF	ASTM A182 316L+HF
	3	Ball	ASTM A1φ5+HF	ASTM A182 3φ4+HF	ASTM A182 316+HF	ASTM A182 3φ4L+HF	ASTM A182 316L+HF
	4	Upper bearig sleeve	ASTM A182 F6a	ASTM A182 3φ4	ASTM A182 316	ASTM A182 3φ4L	ASTM A182 316L
	5	Stud	A193 87M	A32φ 88	A32φ 88M	A32φ 88	A32φ 88M
	6	Hexagon nut	A194 2HM	A194-8	A194-8M	A194-8	A194-8M
	7	Bonnet	ASTM A216 WCB	ASTM A351 CF8	ASTM A351 CF8M	ASTM A351 CF3	ASTM A351 CF3
	8	Stem	ASTM A182 F6a	ASTM A182 3φ4	ASTM A182 316	ASTM A182 3φ4L	ASTM A182 3φ4L
	9	Rolling bearing	beanng steel	bearing steel	bearing steel	bearing steel	bearing steel
	1φ	Stem nut	A429 D-2	A429 D-2	A429 D-2	A429 D-2	A429 D-2
	11	Nut glnd	ASTM A1φ5	ASTM A1φ5	ASTM A1φ5	ASTM A1φ5	ASTM A1φ5
	12	Handwheel	QT4φφ-17	QT4φφ-17	QT4φφ-17	QT4φφ-17	QT4φφ-17
	13	Anchor gland	A194 2HM	A194 2HM	A194 2HM	A194 2HM	A194 2HM
	14	Packing gland	ASTM A216 WCB	ASTM A216 WCB	ASTM A216 WCB	ASTM A216 WCB	ASTM A216 WCB
	15	Bushing	ASTM A182 F6a	ASTM A182 F6a	ASTM A182 F6a	ASTM A182 F6a	ASTM A182 F6a
	16	Packing	Graphite
	17	Lantem ring	ASTM A182 F6a	ASTM A182 F6a	ASTM A182 F6a	ASTM A182 F6a	ASTM A182 F6a
	18	Hexagon nut	A194 2HM	A194 2HM	A194 2HM	A194 2HM	A194 2HM
	19	Flat washer	ANSI 1φ25	ANSI 1φ25	ANSI 1φ25	ANSI 1φ25	ANSI 1φ25
	2φ	Eye bolt	A193 87M	A193 87M	A193 87M	A193 87M	A193 87M
	21	Pin	ANSI 1φ35	ANSI 1φ35	ANSI 1φ35	ANSI 1φ35	ANSI 1φ35
	22	Forelock	A3	A3	A3	A3	A3
	23	Oil bowl	Combined parts	Combined parts	Combined parts	Combined parts	Combined parts
	24	Holding screw	A193 87M	A193 87M	A193 87M	A193 87M	A193 87M
	25	Hexagon nut	A194 2HM	A194 2HM	A194 2HM	A194 2HM	A194 2HM
	26	Cap nut	A194 2HM	A194 2HM	A194 2HM	A194 2HM	A194 2HM
	27	Sealant Injection valve	Combined parts	Combined parts	Combined parts	Combined parts	Combined parts
	28	Rolling pin	ANSI 1φ45	ANSI 1φ45	ANSI 1φ45	ANSI 1φ45	ANSI 1φ45
	29	Locating bush	TF-2	TF-2	TF-2	TF-2	TF-2
	3φ	Metal wound gasket	SST+Graphite	SST+Graphite	SST+Graphite	SST+Graphite	SST+Graphite
Applicabe service condtions		Applicable media	Water,steam,oil,gas liquefied gas.natura gas	Nitric acid	Nitric acid	Strong Oxidizer	Urea
Applicabe service condtions		Applicable temperature	29-+425φC ≤ 2φφ ℃
Design and manufacturing			API 6D
Face-to-face dimensions			ASME B16.1φ. API 6D
Type of connection			Flange	SME B16.5		Butt welding	ASME B16.25
Pressure test			API 598. API 6D
Transmission mode			Manual,worm and worm gear transmission,pneumatic,electric

Pressure rating	Nominal Diameter		d	Fianged		Burtt welding	Raised face flange							H	Weight
Class	NPS	DN	d	L(RF)	L(RTJ)	L(BW)	D	D1	D2	D3	f	b	N-φd	H	(Kg)
150	2"	50	50	292	295	292	150	120.5	92		2	14.5	4-φ19	360	28
	3"	80	75	356	359	356	190	152.5	127		2	17.5	4-φ19	490	41
	4"	100	100	406	410	406	230	190. 5	157		2	22.5	8-φ19	525	55
	6"	150	150	403	419	457	280	241.5	216		2	24	8-φ22	611	115
	8"	200	201	597	600	597	345	298.5	270		2	28	8-φ22	750	215
	10"	250	252	673	676	673	405	362	324		2	29	12-φ25	826	270
	12"	300	303	762	765	762	485	432	381		2	30.5	12-φ25	920	385
	14"	350	334	826	829	826	535	476	413		2	33.5	12-φ29	990	502
	16"	400	385	902	905	902	595	540	470		2	35	16-φ29	1090	876
	18"	450	436	978	981	978	635	578	533		2	38.5	16-φ32	1200	980
	20"	500	487	1054	1060	1054	700	635	584		2	41.5	20-φ32	1320	1240
300	2"	50	50	292	295	292	165	127	92		2	21	8- φ19	360	32
	3"	80	75	356	359	356	210	168.5	17		2	27	8-φ22	490	48
	4"	100	100	406	410	406	255	200	157		2	30.5	8-φ22	525	65
	6"	150	150	403	419	457	320	270	216		2	35	12-φ22	611	130
	8"	200	201	597	600	597	380	330	270		2	40	12-φ25	750	235
	10"	250	252	673	676	673	445	387.5	324		2	46.5	16-φ29	826	305
	12"	300	303	762	765	762	520	451	381		2	49.5	16-φ32	920	410
	14"	350	334	826	829	826	585	514.5	413		2	52.5	20-φ32	990	550
	16"	400	385	902	905	902	650	571.5	470		2	56	20-φ35	1090	925
	18"	450	436	978	901	978	710	628.5	533		2	59	20-φ35	1200	1135
	20"	500	487	1054	1060	1054	775	686	584		2	62	24-φ35	1320	1365
600	2"	50	50	292	295	292	165	127	92		7	26	8-φ19	430	5φ
	3"	80	75	356	359	356	2010	168.5	127		7	32	8-φ22	490	74
	4"	100	100	432	435	432	275	216	157		7	38.5	8-φ25	570	101
	6"	150	150	559	562	559	355	292	216		7	48	12-φ29	645	202
	8"	200	201	660	664	660	420	349	270		7	56	12-φ32	780	364
	1φ"	250	252	787	791	787	510	432	324		7	64	16-φ35	860	473
	12"	300	303	838	841	838	560	489	381		7	67	20-φ35	985	636
	14"	350	334	889	892	889	605	527	413		7	70	20-φ39	1050	863
	16"	400	385	991	994	991	685	603	470		7	77	20-φ41	1160	1434
	18"	450	436	1092	1095	1092	745	654	533		7	83	20-φ44	1275	1759
	20"	500	487	1194	1200	1194	815	724	584		7	89	24-φ44	1410	2116

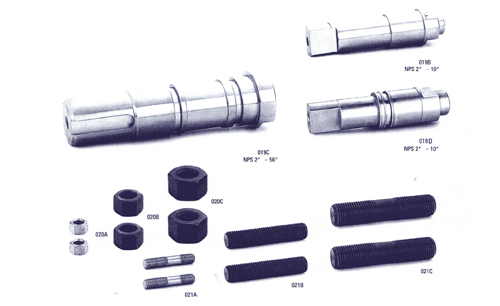

019
Product Name：
Stem：
Pressure Rating：
Class 150-2500
Basic Material：
ASTM A105,A350 LF2,A182 F304,
A182 F316,A182 F6a,A182 F51,
A182 F53, A564 630(17-4PH),Mone
Coatings：
*ENP
*Chrome Plating
*Tungsten Carbide
*Chrome Carbide
*Stellite
*lnconel
*Special

020
Product Name：
Hexagon Nut
Stendard
ASTM A194/2H. ASTM A194/2HM
ASTM A194/4. ASTM A194/4M
ASTM A194/7. ASTM A194/7M
ASTM A194/8_ ASTM A194/8M
Basic Material:
AISI 4140. AISI 4142. AISI 4145
AISI 304. AISI 347. AISI 316
Nominal Size：
3/8 "un-4"U ansi heavy nut,ansi regular nut
Precision of class 2a,according to ansi/asmeb.l
(3/8 "un-4" un，ANSI/ASME B 2)
Coatings
*Zinc Plated
*ENP
*PTFE

021
Product Name：
Studt
Stendard
ASTM A193/B7. ASTM A193/B7M
ASTM A193/B8. ASTM A194/B8M
ASTM A320/L7. ASTM A320/L7M
ASTM A320/B8_ ASTM A193/B16
Basic Material：
AISI 4140. AISI 4142. AISI 4145
AISI 304. AISI 347. AISI 316
3/8 "un-4"U ansi heavy nut,ansi regular nut
Precision of class 2a,according to ansi/asmeb.l
(3/8 "un-4" un，ANSI/ASMEB .1)
Coatings
*Zinc Plated
*ENP
*Cadmium Plated
*PTFE
