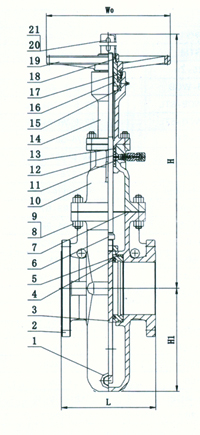

Major parts material form
| No. |
Accessory name |
Material |
| Ordinary type |
Antisulphur type |
| ASTM |
ASTM |
| 1 |
Blowdown stops |
1025+Zn |
A276-304 |
| 2 |
Body |
A216-WCB |
A216-WVB |
| 3 |
Gate disc |
A105+ENP |
A276-304 |
| 4 |
Seat |
A105+PTFE |
A276-304+PTFE |
| 5 |
O-Ring |
NBR |
AFPM |
| 6 |
Stem |
A276-410 |
A276-304 |
| 7 |
Gasket |
Graphite+304 |
Graphite+304 |
| 8 |
Stud |
A193-B7 |
A193-B7 |
| 9 |
Nut |
A194-2H |
A194-2H |
| 10 |
Bonnet |
A216-WCB |
A216-WCB |
| 11 |
Grease injectionjoint |
1035+Zn |
1035+Zn |
| 12 |
Sealing shroud |
A276-410 |
A276-410 |
| 13 |
Packing |
NBR |
FPM |
| 14 |
Yoke |
A216-WCB |
A216-WCB |
| 15 |
Bearing |
Package |
Package |
| 16 |
Stem nut |
C95500 |
C95500 |
| 17 |
Gland |
A105 |
A105 |
| 18 |
Joint nut |
A276-410 |
A276-410 |
| 19 |
Hand wheel |
A216-WCB |
A216-WCB |
| 20 |
Lndicating cover |
1020 |
1020 |
| 21 |
Transparent tape |
HIPS-A |
HIPS-A |

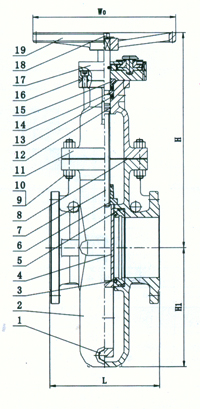

Major parts material form
| No. |
Accessory name |
Material |
| ASTM |
| 1 |
Blowdown stops |
1025+Zn |
| 2 |
Body |
A216-WCB |
| 3 |
Seat |
A105+PTFE |
| 4 |
Gate disc |
A105+ENP |
| 5 |
O-Ring |
FPM |
| 6 |
Stem nut |
C95500 |
| 7 |
Stem |
A276-410 |
| 8 |
Gasket |
Graphit+304 |
| 9 |
Stud |
A193 B7 |
| 10 |
Nut |
A194 2H |
| 11 |
Bonnet |
A216-WCB |
| 12 |
O-Ring |
FPM |
| 13 |
Bearing |
Package |
| 14 |
To the ring of holding |
1045 |
| 15 |
Conjunction set |
1035 |
| 16 |
Screws |
ASTM A193 B7 |
| 17 |
Switch indicator |
ASTM A193 B7 |
| 18 |
Nut |
A194-2H |
| 19 |
Hand wheel |
A216-WCB |
