Applicable Standards
★Steel Plug Valves, API 599
★Steel Plug Valves, ISO 14313
★Fire Durable, API607
★Anti Static. API 599
★Steel Valves, ASME B16.34
★Face To Face, ASME B16.10
★End Flanges, ASME B16.5
★Buttwelding Ends, ASME B16.25
★Inspection And Test, API 598
Design Description
▲Rugged, Heavy-duty Body
▲Bolted Bonnet
▲PTFE Sleeved Tapered Plug
▲Large Port Openings
▲Non-lubricated
▲Stem Integral With Plug
▲In-line Adjustment
▲Fire Durable Construction
▲Anti Static Device
▲Stopper Device
▲Renewable Seat Ring
▲Flanged Our Buttwelding Ends
▲Available With W.G Actuator

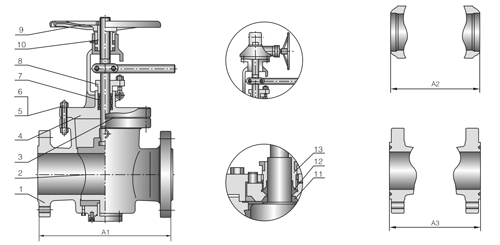

Standard Material Specifiactions
| NO. |
Part Name |
ASTM Material |
| Carbon steel |
304 Type |
316 Type |
04LType |
316LType |
20 Alloy |
| 1 |
Body |
A216 WCB |
A351CF8 |
A351 CF8M |
A351CF3 |
A351 CF3M |
A351 CN7M |
| 2 |
Plug |
A182 F304 |
A182 F304 |
A182 F316 |
A182 F304L |
A182 F316L |
20 Alloy |
| 3 |
Bonnet Gasket |
304+graphite |
304+graphite |
316+graphite |
304L+graphite |
316L+graphite |
316+graphite |
| 4 |
Bonnet |
A216 WCB |
A351CF8 |
A351 CF8M |
A351CF3 |
A351 CF3M |
A351 CN7M |
| 5 |
Bonnet Bolt |
A193 B7 |
A193 B8 |
A193 B8M |
A193 B8 |
A193 B8M |
A193 B8 |
| 6 |
Bonnet Nut |
A1942H |
A194 8 |
A1948M |
A194 8 |
A1948M |
A194 8 |
| 7 |
Packing |
Graphite |
Graphite *1 |
Graphite *1 |
Graphite *1 |
Graphite *1 |
Graphite *1 |
| 8 |
Gland Flange |
A216 WCB |
A351CF8 |
A351CF8 |
A351CF8 |
A351CF8 |
A351CF8 |
| 9 |
Hand wheel |
Carbon steel |
Carbon steel+Zn |
| 10 |
Sleeve |
Class Filled PTFE |
| 1* |
PTFE Optional |
