一、Structure and purpose

A hydraulic operated valve taking a solenoid valve as the pilot valve．used in a pipeline system for automatic control and to remotely control open-close of the system upon an electric signal，accurate and quick response in the execution of remote operation and control，adjustable valve close speed，stably closed without any pressure fluctuation．The solenoid valve can use either AC220V or DC24V power and is available with normal open or close type．This valve features a small volume，light weight，easy repair and use，safety and reliability，long duration and can replace both gate and butterfly valves for use in a large electric operation system.

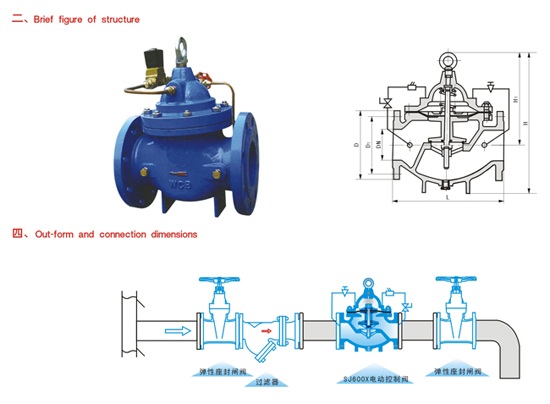

三、 Schematic diagram of installation

Note:Either elastic seat ring sealed gate valve or butterfly valve car be selected in the schematic diagram of installation.Recommended to select the butterfly valve un case of ≥ DN350
