液控球閥系列

詳細信息

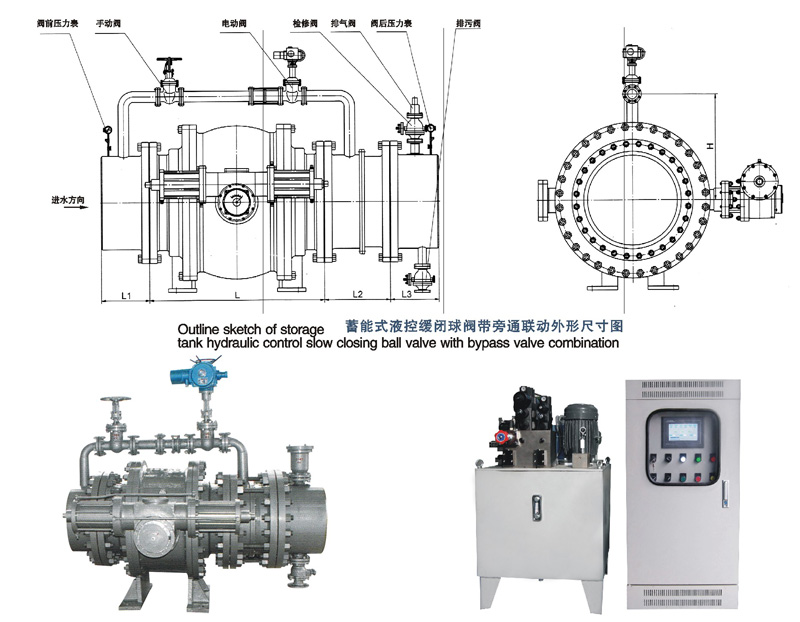

一、產品概述Brief introduction of product

    水電站型液控緩閉球閥是對液控緩閉蝶閥應用范圍的有力補充，特別適用于高水頭的水電站工況。工作時，閥門與水輪機配合，按照水力
過渡過程原理，通過預設的啟閉程序，有效消除管路水錘，實現管路可靠截止，起到保護管路系統安全的作用。
    本系列液控緩閉球閥，智能化程度高、功能齊全、性能穩定可靠，且流阻系數極小，全開時的流阻系數與管道相等。我公司并可根據用戶
的特殊要求單獨進行設計，多方位滿足用戶對該類產品的需要。
    1、流體阻力小，球閥是所有閥類中流體阻力最小的一種，即使是縮徑球閥，其流體阻力也相當小。
    2、開關迅速、方便，只要閥桿轉動900，球閥就完成了全開或全關動作，很容易實現快速啟閉。
    3、密封性能好。球閥閥座密封圈一般采用聚四氟乙烯等彈性材料制造，易于保證密封，而且球閥的密封力隨著介質壓力的增加而增大。
    4、閥桿密封可靠。球閥啟閉時閥桿只做旋轉運動，因此閥桿的填料密封不易被破壞。
    5、球閥的啟閉只做90。轉動，故易實現自動化控制和遠距離控制，球閥可配置氣動裝置、電動裝置、液動裝置、氣液聯動裝置或電液聯動
裝置。
      Power plant hydraulic control slow closing ball valve is a valuable complementarity for the hydraulic control slow closing butterfly valve. It specially fits for high head
water power plant. It coordinates with hydroturbine, working as per the hydraulic transition principle, effectively eliminates the water hammer effect and ensures reliable shut-
off of pipeline by preset program, therefore, protects the safety of pipelines. This series of hydraulic control slow closing ball valve is with high degree of intelligence, complete
functions, reliable performance and low flow resistance coefficient, the flow resistance coefficient at full opening is similar with the pipeline.We also provide tailor-made
solutions according to user’s unique requirement and meet the users needs in every aspects.
     1 . Low flow resistance. ball valve is with the lowest flow resistance among the valves, even if the reduced port ball valve, the flow resistance is still very low.
     2. Swift and convenient opening and closing. By turning 900 , the ball valve completes full opening or full closing action, which makes it ideal for fast opening and closing.
     3. Excellent sealing. The seat ring of ball valve is mainly resilient material like PTFE, which ensures perfect sealing, furhtermore, the sealing strength of ball valve increases simultaneously with the medium pressure.
     5. The ball valve achieves opening and closing by rotating 900 , which makes it easy to realize automatic control and remote control. Ball valve can be equipped with pneumatic actuator, electric actuator, hydraulic actuator, gas over oil actuator or electric hydraulic actuator.

二、設計與制造標準Design and manufacturer standard

設計與制造Design and manufacturing: GB/T14478 GB/T12237
法蘭標準Flange Standard：GB/T9112-9124 GB12380.1-12380.3
蓄能器標準Standard of Energy storage vessel: GB/T2352

傳動裝置Actuation: JB/T5299
結構長度Face to face length：GB/T12221
試驗與檢驗Inspection and test: GB/T14478 GB/T13927

三、基本參數Basic Parameters

油泵電源 Oil Pump electricity supply		AC380V/50Hz	控制電源 Control power supply		DC220V
泵站設計壓力 Design pressure of pump station		31.5MPa	泵站工作壓力 Working pressure of pump station		13-16MPa
系統壓力設定 System Pressure Setting	上限 Upper Limit	16MPa	油缸工作壓力 Working pressure of oil cylinder		13-16MPa
	下限 Lower limit	13MPa	泵站用液壓油 Hydraulic olfor pump staion		N46-N68號
通徑范圍DN (mm) Nominal diameter		300-1600	公稱通徑 Nominal diameter		<700	≥700
壓力范圍PN( Mpa) NOminal Pressure		2.5-10	開閥時間(90度) Opening time		10-60S(可調) 10-60S(Adjustable)	30-90S(可調)
試驗壓力 Ps(Mpa) Testing Pressure	密封Seat	1.1×PN	關閥時間(90度) Closing time (90 Degrees)	快關 Fast closing	3-20S	6-30S
	強度Shell	1.5×PN		慢關 Slow closing	6-60S	10-90S
工作壓力(MDa) Workina Pressure		≤1.0×PN	關閥角度	快關 Fast closing	70±10度	70±10度
介質溫度(℃) Medium temperature		≤80		慢關 Slow closing	20±10度	20±10度
適用介質 Applicable Medium		清水、海水、泥沙水、油品等 Water, Sea water, Slurry, Oil etc	防護等級 Protection Level		lp56

四、主要零件選用材料Mian prts and materia

零件名稱Part Name	材料Material
閥體body	球墨鑄鐵、碳素鋼Ductile lron，Carbon steel
球體Ball	球墨鑄鐵、碳素鋼Ductile iron，Carbon steel
閥軸Shaft	不銹鋼、碳素鋼Stainless Steel，Carbon Steel
閥座Seat	PTFE; PPL
球體密封體Ball seat	不銹鋼Stainless Steel
滑動軸承Bushing	CSB自潤滑軸承CSB Self-Iubricated bearing
填料Packing	V形密封圈、柔性石墨V-shape sealing ring，Flexible graphite
傳動箱體Transmission box	WCB

—、產品概述Br ief introduct ion of product

雙作用式液控緩閉球閥是對液控緩閉球閥、球閥應用范圍的有力補充，特別適用于高水頭的水電站工況。工作時，閥門與水輪機配合，按照水力過渡過程原理，通過預設的啟閉程序，有效消除管路水錘，實現管路可靠截止，起到保護管路系統安全的作用。本系列雙作用式液控緩閉球閥，具有重錘蓄能、蓄能器蓄能雙重蓄能方式，智能化程度高、功能齊全、性能穩定可靠，且流阻系數極小，全開時的流阻系數與管道相等。我公司并可根據用戶的特殊要求單獨進行設計，多方位滿足用戶對該類產品的需要。
Double acting hydraulic control slow closing ball valve is a valuable addition for the hydraulic control slow closing ball valve and butterfly valve. It specially fits for high head water power plant. It coordinates with hydroturbine, working as per the hydraulic transition principle, effectively eliminates the water hammer effect and ensures reliable shut-oft of pipeline by preset program, therefore, protects the safety of pipelines. This series of double acting hydraulic control slow closing ball valve is energized by dual energy storage, namely, counter weight and storage tank, with high degree of intelligence, complete functions, reliable performance and low flow resistance coefficient, the flow resistance coefficient at full opening is similar with the pipeline. We also provide tailor-made solutions according to user’s unique requirement and meet the user s needs in every aspects.

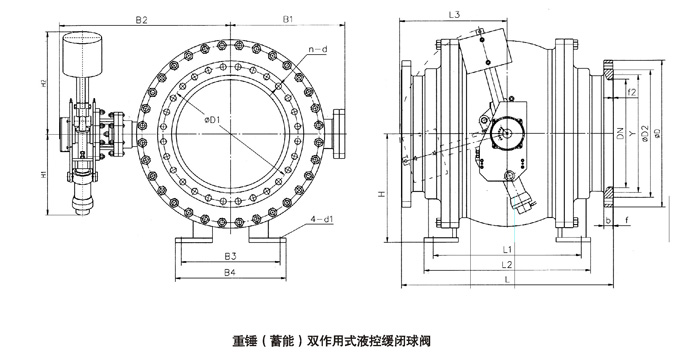

S水電站型重錘（蓄能）雙作用式液控緩閉球閥主要外形尺寸(PN=4. OMpa) 單位： (mm)

公稱通徑 DN	L	D	D1	Y	b	f2	n	d	L1	L2	H	H1	H2	B1	B2	B3	B4	d1
300	390	515	450	364	42	3	16	33	1000	250	350	495	965	280	838	320	380	32
350	430	580	510	422	46	4	16	36	1400	300	390	840	1380	305	860	320	380	32
400	530	660	585	474	50	4	16	39	1400	350	430	840	1380	365	930	340	420	32
500	630	755	670	576	55	4	20	42	1400	400	480	840	1380	440	1050	400	500	32
600	800	890	795	676	60	4	20	48	1600	450	550	915	1575	525	1105	450	550	35
700	900	995	900	778	64	4	24	48	1800	500	600	1030	1755	555	1300	570	700	35
800	1000	1140	1030	883	72	4	24	56	1800	550	670	1030	1755	605	1350	650	780	42
900	1100	1250	1140	988	76	4	28	56	2100	600	730	1120	2050	670	1410	700	860	42
1000	1200	1360	1250	10914	80	5	28	56	2100	650	780	1120	2050	755	1530	740	900	42
1100	1250	1460	1350	1194	84	5	28	56	2100	700	830	1120	2050	755	1580	760	920	42
1200	1300	1575	1460	1294	88	5	32	62	2300	750	890	1255	2230	855	17010	790	950	42
1250	1400	1625	1510	1344	88	5	32	62	2300	800	920	1255	2230	855	1740	1140	1280	42
1300	1500	1695	1580	1394	94	5	32	62	2300	850	970	1255	2230	1010	1765	840	1000	42
1 4100	1600	1795	1680	14914	98	5	36	62	2400	900	1000	1255	1340	1010	1930	880	1050	48
1500	1700	1925	1800	1594	98	5	36	70	2400	950	1080	1255	2340	1010	1970	900	1100	48
1600	1800	2025	1900	1694	108	5	40	70	2400	1000	1130	1255	2340	1120	2045	1100	1300	48

S永電站型重錘（蓄能）雙作用式液控緩閉球閥主要外形尺寸(PN=6. 4Mpa) 單位： (mm)

翻桶直徑 DN	L	D	D1	D2	Y	f	f2	b	n	d	L1	L2	H	H1	H2	B1	B2	B3	B4	d
300	838	530	460	410	364	4	3.5	52	16	36	430	550	390	495	965	280	838	320	380	32
350	889	600	525	465	422	5	4	56	16	39	480	600	430	840	1380	306	860	320	380	32
400	991	991	670	535	474	5	4	60	16	42	550	670	480	840	1380	365	930	340	420	32
500	1194	800	705	615	576	5	4	68	20	48	650	780	550	840	1380	440	1050	400	500	32
600	1397	930	820	735	676	5	4	76	20	56	750	880	600	915	1575	525	1105	450	550	35
700	1594	1045	935	840	778	5	4	84	24	56	900	1050	670	1030	1755	555	1300	570	700	35
800	1778	1165	1050	960	883	5	4	92	24	62	1050	1300	730	1030	1755	606	1350	650	780	48
900	2083	1285	1170	1070	988	5	4	98	28	62	1300	1450	780	1120	2050	670	1410	700	860	48

注：
★表中球閥連接均按GB/T9113.2-2000面(MF)法蘭尺寸。若采用其他連接形式需在合同中說明。
★電氣控制方法及儲運、安裝、調試參考<液控緩閉止回蝶閥>的有關內容。
★電液控制原理詳細說明參看相關產品的《安裝使用說明書》。
NOTE: +The connection dimensions in this table is according to GB/T91 1 3.2-2000 male and female (MF) flange dimensions, please specify in the order if other connection type is required.
★ For the instnjction of electric control and storage, installation, debugging, please refer to previous chapter of <Hydraulic control slow closing bunertly non-return valve>,k For the details of electric-hydraulic controlling principle, please refer to <lnstallaiton Manual> of related product.
