二、概況Profile
籃式過濾器?*似髦械餒擼繞淥似骷際躋蟾擼饕糜詮艿郎希創砉苣詬呔紉禾濉?BR>Basket Strainer is leader of strainers,with higher technical requirement, It mainly used in tubes to deal with high precision liquid.
三、工作原理Working Principle
該過濾器設計合理，使用方便，可打開上蓋拿出濾網處理污物，不會帶有污物留在管內，濾網采用40-200目。
The filter design is reasonable,easy to use,open the cover processing the dirt with out dirt in the tube using 40-200 mesh strainer.
四、使用說明Use instructions
安裝前先檢查產品螺絲有沒有松脫，污物有沒帶入過濾器內，此產品一定要安裝管道出口前（否泵前），安裝時請注意流向標志，在使用時一定要定期清理過濾器濾網。Check products before installation of there are loose screws tracks,lf there is dirl into the filter the product mastba installed before the pipe outlet,Please pay attention to tha straam direction whan installation and the filter must be clean when it works.
五、技術參數及材料 Technical date sheet and materials
工作壓力：1.6. 2.5. 4.OMPa
殼體：鋼管20
試驗壓力：2.4. 3.8. 6.0
濾芯：304不銹鋼濾網可根據設計要求定制。
Working presure:1.6,2.5, 4.OMPa
Body: steel tube 20#
Testing pressure: 2.4,3.8,6.0
Element: 304 stainless steel filter can according to the design requirements. |
| |
| SB34復式過濾器安裝尺寸SB34 Duplex Strainer mounting size |
YG07筒形泵前過濾器安裝尺寸YG07 The Cylindncal Pump Strainer mounting size |

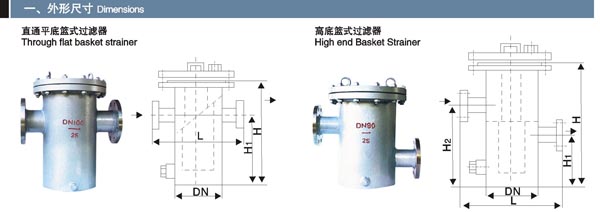

| 公稱通徑 |
尺寸( mm)
|
管塞 |
| L |
H |
H1 |
DO |
|
| 25 |
180 |
260 |
160 |
76 |
R3/4" |
| 32 |
200 |
270 |
160 |
76 |
R3/4" |
| 40 |
260 |
300 |
170 |
108 |
R3/4" |
| 50 |
260 |
300 |
170 |
108 |
R3/4" |
| 65 |
330 |
360 |
210 |
133 |
R3/4" |
| 80 |
340 |
400 |
250 |
159 |
R3/4" |
| 100 |
400 |
470 |
300 |
219 |
R3/4" |
| 125 |
480 |
550 |
360 |
273 |
R3/4" |
| 150 |
500 |
630 |
420 |
273 |
R3/4" |
| 200 |
560 |
780 |
530 |
325 |
R3/4" |
| 250 |
660 |
930 |
640 |
426 |
M20x1.5 |
| 300 |
750 |
1200 |
840 |
478 |
M20x1.5 |
| 400 |
850 |
1400 |
920 |
530 |
M35x2.0 |
| 500 |
100 |
1500 |
1050 |
630 |
M35x2.0 |
| 600 |
1380 |
2000 |
1400 |
800 |
M35x2.0 |
| 800 |
1500 |
2300 |
1640 |
950 |
| |
| 公稱通徑 |
尺寸( mm) |
管塞 |
| L |
H |
H1 |
H2 |
DO |
|
| 25 |
180 |
280 |
110 |
180 |
76 |
R3/4" |
| 32 |
200 |
285 |
110 |
180 |
76 |
R3/4" |
| 40 |
260 |
340 |
120 |
220 |
108 |
R3/4" |
| 50 |
260 |
340 |
120 |
220 |
108 |
R3/4" |
| 65 |
330 |
400 |
160 |
270 |
133 |
R 3/4" |
| 80 |
340 |
460 |
180 |
320 |
159 |
R3/4” |
| 100 |
400 |
550 |
220 |
390 |
219 |
R3/4" |
| 125 |
480 |
630 |
260 |
450 |
273 |
R3/4" |
| 150 |
500 |
720 |
310 |
530 |
273 |
R3/4" |
| 200 |
560 |
900 |
390 |
670 |
325 |
R 3/4" |
| 250 |
660 |
1070 |
480 |
800 |
426 |
M20x1.5 |
| 300 |
750 |
1360 |
640 |
1040 |
478 |
M20x1.5 |
| 400 |
850 |
1500 |
600 |
1100 |
530 |
M35x2.0 |
| 500 |
1050 |
1600 |
640 |
1200 |
630 |
M35x2.0 |
| 600 |
1380 |
2000 |
700 |
1300 |
800 |
M35x2.0 |
| - |
- |
- |
- |
- |
- |
- | |
